Specifications:
1. Pin/Fork/U type
2. Universal for MCB
3. Material: Pure copper, fire-resistance PVC
4. Current:32A,50A,63A,80A,100A
5. Rated Voltage: up to 415V
6. Standard length 1M
7. Support OEM & ODM
8. CE & ROHS,TUV,REACH Certificated

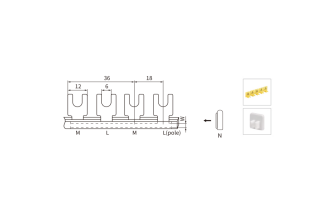

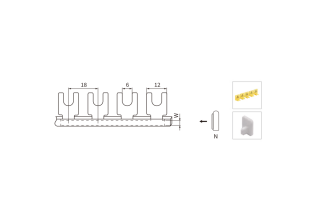

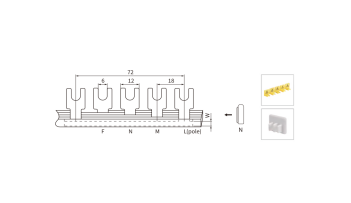

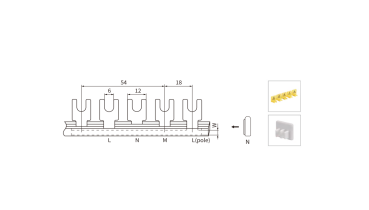

| Model | Thickness(mm) | Cross Section(mm²) | Current (A) | Width (mm) | Drawing |
| CS301-1 | 1.2 | 6 | 40 | 5 |  |
| CS301-2 | 1.5 | 10 | 63 | 7 | |
| CS301-3 | 1.5 | 13 | 70 | 9 | |
| CS301-4 | 1.5 | 16 | 80 | 11 | |
| CS302-1 | 1.2 | 6 | 40 | 5 |  |
| CS302-2 | 1.5 | 10 | 63 | 7 | |
| CS302-3 | 1.5 | 13 | 70 | 9 | |
| CS302-4 | 1.5 | 16 | 80 | 11 | |
| CS303-1 | 1.2 | 6 | 40 | 5 |  |
| CS303-2 | 1.5 | 10 | 63 | 7 | |
| CS303-3 | 1.5 | 13 | 70 | 9 | |
| CS303-4 | 1.5 | 16 | 80 | 11 | |
| CS304-1 | 1.2 | 6 | 40 | 5 |  |
| CS304-2 | 1.5 | 10 | 63 | 7 | |
| CS304-3 | 1.5 | 13 | 70 | 9 | |
| CS304-4 | 1.5 | 16 | 80 | 11 |
