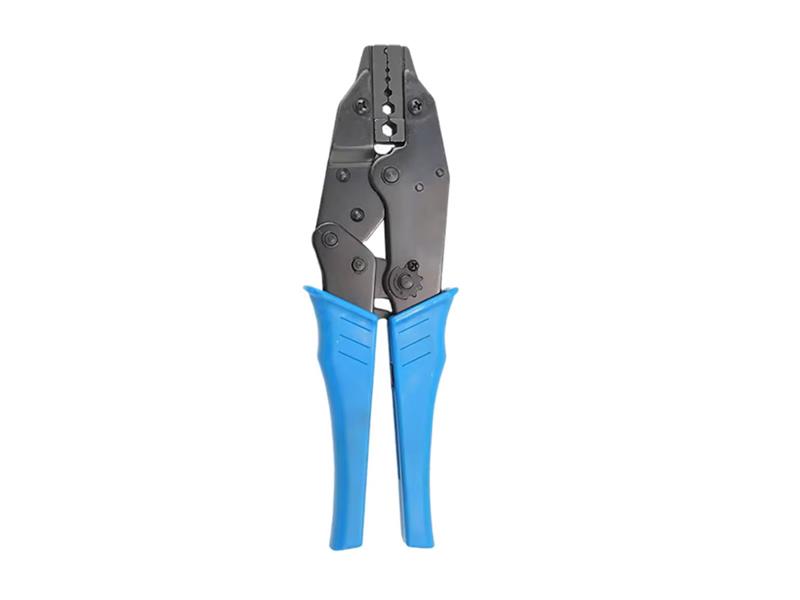

| RATCHET CRIMPING PLIER (EUROPEAN STYLE) | ||||||
| Item No. | Range of Application | Connectors | Capacity AWG |
Die set | Profile | |
| mm² | AWG | |||||
| CS-03B | Non-insulated tabs andreceptacles |
 |
0.5-1.0 1.5-2.5 4.0-6.0 |
20-10 |  |
 |
| CS-03A | Insulated terminals |
 |
0.5-2.0 | 20-16 |  |
 |
| CS-03D | Insulated terminals |  |
1.0-1.5 1.5-2.5 4.0-6.0 |
20-10 |  |
 |
| CS-6GB | Non-insulated terminals |
 |
1.5-6.0 | 16-10 |  |
 |
| CS-04WFL | Insulated and non-insulated ferrules |
 |
0.5 0.75 1,1.5 2.5,4 |
20-12 |  |
 |
| CS-1016 | Non-insulated terminals |
|
0.5-16 | 20-5 |  |
 |
| CS-04WF | Insulated terminals |
 |
1-10 | 17-7 |  |
 |
| CS-07FL | Flag type female receptacles insulated terminals |
 |
0.5-2.5 | 20-13 |  |
 |
| CS-05FL | Flag type receptacles |
 |
0.5-1.5 1.5-2.5 |
20-13 |  |
 |
| CS-10 | Non-insulated terminals |
 |
1.0-10 | 17-7 |  |
 |
| CS-26TW | Insulated and non-insulated ferrule |
 |
0.5-6.0 | 20-10 |  |
 |
| CS-35WF | Insulated and non-insulated ferrules |
 |
10 15 25 35 |
7-2 |  |
 |
| CS-25WF | Insulated and non-insulated ferrule |
 |
2×(0.5 0.75,1, 1.5,2.5, 4,6) |
20-10 |  |
 |
| CS-02 | Special for crimping of aluminum sleeves for steel wire ropes |  |
6 8 10 |
11-10 |  |
 |
| CS-01 | Clamp of galvanothermy film terminal |
 |
4.0-6.0 | 11-9 |  |
 |
| CS-05H | RG55,58,59.62,5,6. 21,140,141,142,143, 210,212,222,223,303 304,400,BELDEN 8279 8281,9231,9141 |
 |
8.1,6.5 5.4,2.6 1.72 |
 |
 |
|
| CS-02H | RG55,58,59,62,140 41,142,223,303. 400, FIBER OPTIC.BELDEN 8279 |
 |
6.5 5.4 1.72 |
 |
 |
|
| CS-H456 | RG55,58,59.62,5,6 21,140,141,142,143 210,212,222,223,303 304.400,BELDEN 8279 8281,9231,9141 |
 |
6.5 5.5 4.1 3.3 3.0 1.7 |
 |
 |
|
| CS-02H1 | RG58, 59, 62 8X, 140, 142, 174, 210,223,303 400,FIBER OPTIC' BELDEN 8279 |
 |
6.5 5.4 3.25 2.0 1.72 1.0 |
 |
 |
|
| CS-1 | For crimping the terminal of aviation plug-in |
 |
1.0-2.5 | 17-13 |  |
|
| CS-01BM | D-SUB terminals |  |
0.08-0.5 | 28-20 |  |
 |
| CS-02WF2C | Insulated and non-insulated ferrules and insulated terminals |
 |
0.5-2.5 | 20-13 |  |
 |
| CS-02B | D-SUB terminals |  |
0.5-2.5 | 20-13 |  |
 |
| CS-16WF | Insulated and non-insulated ferrules |
 |
6.0-16 | 10-6 |  |
 |
| CS-0325 | Non-insulated terminals |
 |
0.75-2.5 | 18-13 |  |
 |
| CS-0725 | insulated terminals |  |
1.5-2.5 | 15-13 |  |
 |
| CS-11011 | Non-insulated tabs and receptacles |
 |
1.0-2.5 | 17-13 |  |
 |
| CS-48B | TAB2.8,4.8 terminals | |
0.5-2.5 | 20-13 |  |
 |
