| Type | Rated current(A) | Rated power(VA) | Weight (kg) |
||
| Class:0.5 | Class:1 | ||||
| MSQ-A | 30-5 | 5-10 | 5-10 | 0.60 | |
| 40-5 | 5-10 | 5-10 | 0.60 | ||
| 50-5 | 5-10 | 5-10 | 0.60 | ||
| 60-5 | 5-10 | 5-10 | 0.60 | ||
| 75-5 | 5-10 | 5-10 | 0.60 | ||
| 80-5 | 5-10 | 5-10 | 0.60 | ||
| 100/5 | 5-10 | 5-10 | 0.60 | ||
| 120/5 | 5-10 | 5-10 | 0.60 | ||
| 125/5 | 5-10 | 5-10 | 0.60 | ||
| 200/5 | 5-10 | 5-10 | 0.60 | ||
| 250/5 | 5-10 | 5-10 | 0.60 | ||
| Type | Bar&Conductor | Rated current(A) | Rated power(VA) | Weight (kg) |
|
| Class:0.5 | Class:1 | ||||
| MSQ-30 | Bar:30x10mm Conductor:Φ20mm | 30-5 | —— | 1 | 0.40 |
| 40-5 | —— | 1 | 0.40 | ||
| 50-5 | —— | 1 | 0.40 | ||
| 60-5 | —— | 1 | 0.40 | ||
| 75-5 | 1 | 1.5 | 0.40 | ||
| 80-5 | 1.5 | 2.5 | 0.40 | ||
| 100/5 | 2.5 | 5 | 0.40 | ||
| 150/5 | 5-10 | 5-10 | 0.40 | ||
| 200/5 | 5-10 | 5-10 | 0.40 | ||
| 250/5 | 5-10 | 5-10 | 0.40 | ||
| 300/5 | 5-10 | 5-10 | 0.40 | ||
| Type | Bar&Conductor | Rated current(A) | Rated power(VA) | Weight (kg) |
|
| Class:0.5 | Class:1 | ||||
| MSQ-40 | Bar:40x10mm Conductor:Φ30mm |
100/5 | 2.5 | 2.5 | 0.38 |
| 150/5 | 3 | 5 | 0.38 | ||
| 200/5 | 5 | 5-10 | 0.38 | ||
| 250/5 | 5-10 | 5-10 | 0.38 | ||
| 300/5 | 5-10 | 5-10 | 0.38 | ||
| 400/5 | 5-10 | 5-10 | 0.38 | ||
| 500/5 | 5-10 | 5-10 | 0.38 | ||
| Type | Bar&Conductor | Rated current(A) | Rated power(VA) | Weight (kg) |
|
| Class:0.5 | Class:1 | ||||

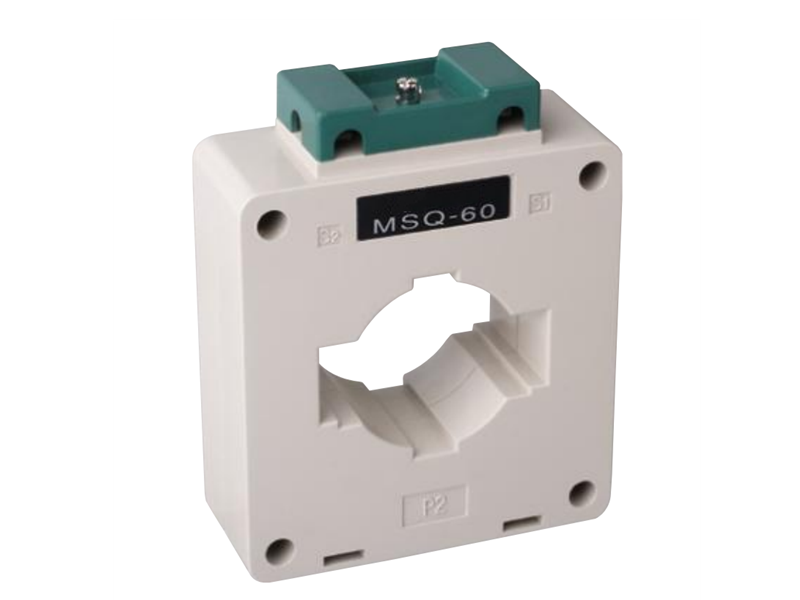

| MSQ-60 | Bar:60x20mm Conductor:Φ40mm |
250/5 | 5 | 5 | 0.60 |
| 300/5 | 5 | 5 | 0.60 | ||
| 400/5 | 5-10 | 5-10 | 0.60 | ||
| 500/5 | 5-10 | 5-10 | 0.60 | ||
| 600/5 | 10-15 | 10-15 | 0.60 | ||
| 750/5 | 10-15 | 10-15 | 0.60 | ||
| 800/5 | 10-15 | 10-15 | 0.60 | ||
| 1000/5 | 15 | 15 | 0.60 | ||
| Type | Bar&Conductor | Rated current(A) | Rated power(VA) | Weight (kg) |
|
| Class:0.5 | Class:1 | ||||
| MSQ-80 | Bar:82x30mm Conductor:Φ80mm |
750/5 | 15 | 15 | 0.75 |
| 800/5 | 15 | 15 | 0.82 | ||
| 1000/5 | 15 | 15 | 0.89 | ||
| 1200/5 | 15 | 15 | 0.99 | ||
| 1500/5 | 15 | 15 | 1.02 | ||
| Type | Bar&Conductor | Rated current(A) | Rated power(VA) | Weight (kg) |
|
| Class:0.5 | Class:1 | ||||
| MSQ-100 | Bar:80x30mm or 100x10mm Conductor:Φ60mm |
1500/5 | 15 | 15 | 0.80 |
| 1600/5 | 15 | 15 | 0.80 | ||
| 2000-5 | 15 | 15 | 0.94 | ||
| 2250-5 | 15 | 15 | 0.98 | ||
| 2500-5 | 15 | 15 | 1.10 | ||
| 3000-5 | 15 | 15 | 1.16 | ||
| Type | Bar&Conductor | Rated current(A) | Rated power(VA) | Weight (kg) |
|
| Class:0.5 | Class:1 | ||||
| MSQ-125 | Bar:125x57mm or 125x10mm Conductor:Φ60mm |
1500/5 | 15 | 15 | 1.00 |
| 2000-5 | 15 | 15 | 1.15 | ||
| 2500-5 | 15 | 15 | 1.45 | ||
| 3000-5 | 15 | 15 | 1.60 | ||
| 4000-5 | 15 | 15 | 1.90 | ||
| 5000-5 | 15 | 15 | 2.20 | ||
