| KTS 013： |
| Model |
KTS013 |
| Switching difference |
Thermostatic bimetal |
| Sensor Element |
12.6°F± 7 °F tolerance (7 K±4 K)thermostatic bimetal |
| Contact type |
snap-action contact |

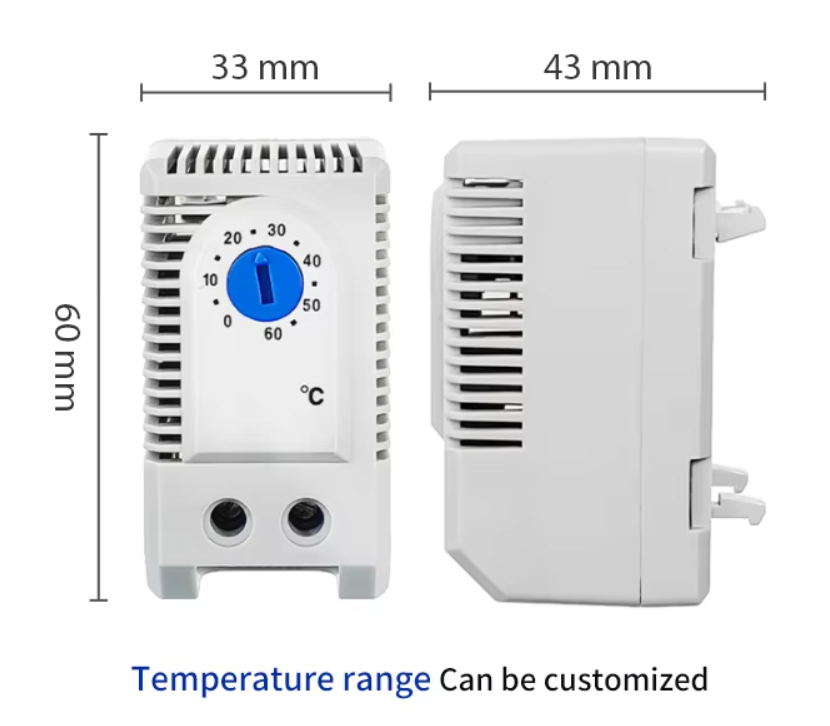

| Dimension |
75X 33x 43mm |
| Weight |
40g |
| Temperature range |
0-60°C(customizable) |
| Service life |
> 100000cycles |
| Max.switching capacity |
AC 110V--250V/DC 24V-72V(customizable) |
| Max.surge current |
AC 16 A for 10 sec. |
| Housing |
plastic, uL 94V-o,light grey |
| Mounting |
clip for 35 mm DIlv rail |
| Operating/Storage temperature |
_45 to 80°C |
| Operating/Storage humidity |
max.90 %RH (non-condensing) |
| Protection degree |
IP20 |
