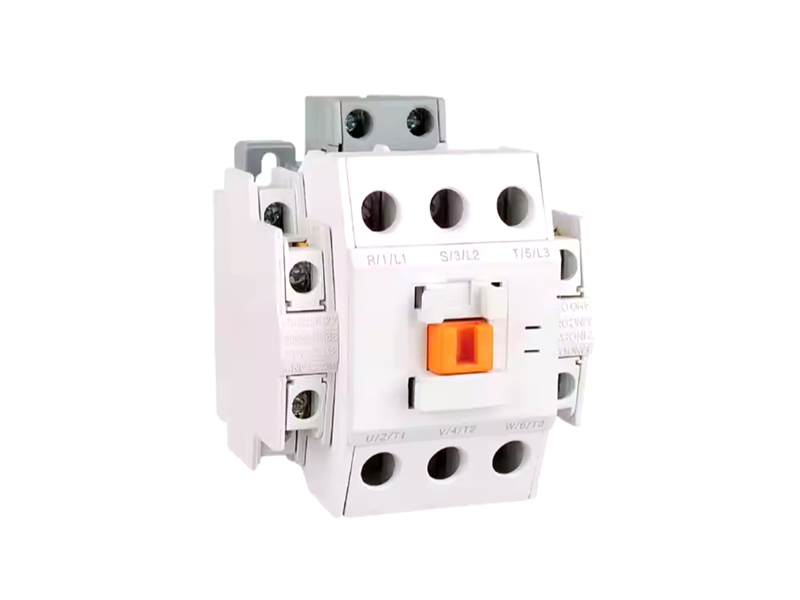

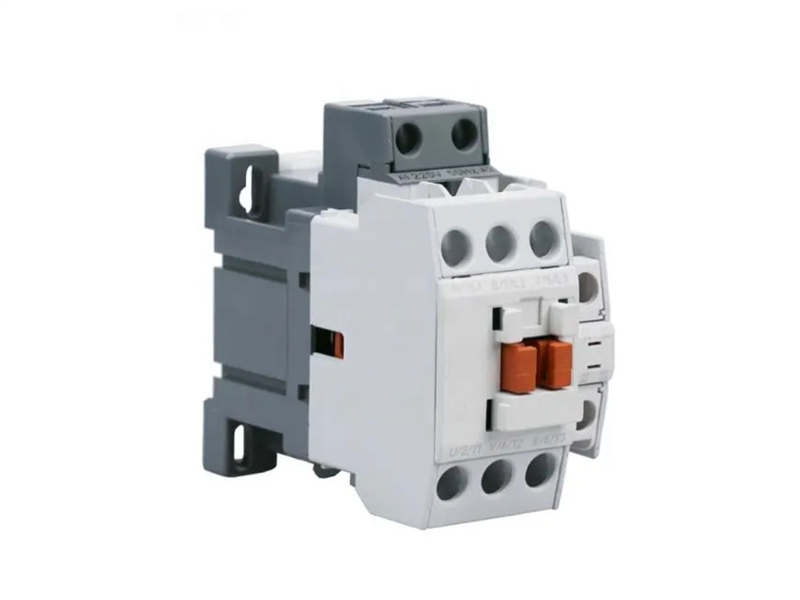

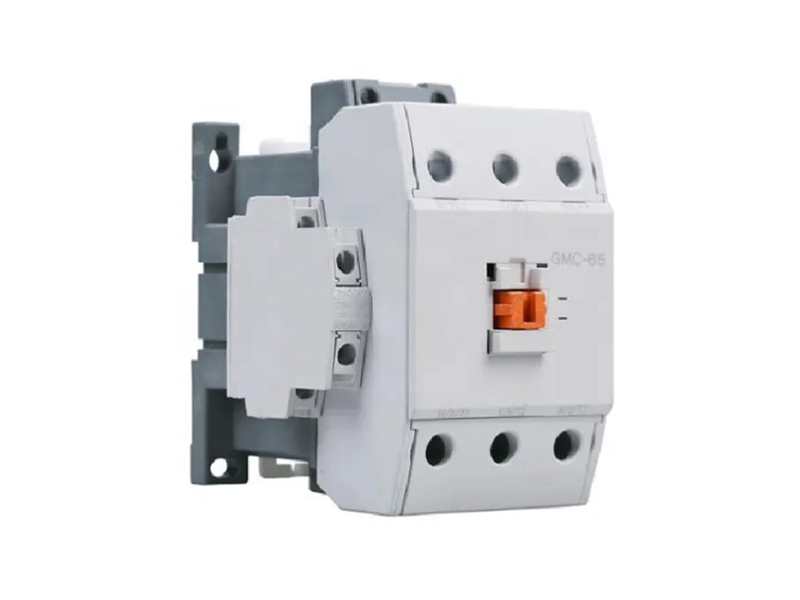

GMC AC CONTACTOR,Products,Changsong Electric

Application
GMC series AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50/60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC947-2,VDE0660 & BS5452.

Specification
Type					GMC-9	GMC-12	GMC-12	GMC-12	GMC-12
	Ac1 duty				20A	20A	25A	32A	50A
IEC- 60947	Ac3 duty		200-240V 380-440V 500-550V 690V		2.5kW11A	3.5kW13A	4.5kW18A	5.5kW22A	7.5kW32A
					4kW9A	5.5kW12A	7.5kW18A	11kW22A	15kW32A
					4kW7A	7.5kW12A	7.5kW13A	15kW22A	7.5kW13A
					4kW5A	7.5kW9A	7.5kW9A	15kW18A	18.5kW21A
	Continuous current(Ith)				20A	25A	30A	32A	45A
UL	AC mo- tor	Single phase Three phase		115V 230V	0.5HP	0.5HP	1HP	2HP	2HP
				115V 230V	1	2HP	3HP	3HP	5HP
				200V 230V 460V 575V	2	3HP	5HP	7HP	7.5HP
					3	3HP	5HP	7.5HP	10HP
					2	7.5HP	10HP	10HP	20HP
					5	10HP	15HP	15HP	20HP
Lifetime (Unit:10:000) Time)Aux.contact				Electrical Mechanical	250	250	250	250	200
Lifetime (Unit:10:000) Time)Aux.contact				Electrical Mechanical	2500	2500	2500	2500	1500
Standard					1NO1NC	1NO1NC	1NO1NC	1NO1NC	2NO2NC

Type					GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
	Ac1 duty				60A	80A	100A	110A	135A
IEC- 60947	Ac3 duty		200-240V 380-440V 500-550V 690V		11kW40A	15kW55A	18.5kW65A	22kW75A	25kW85A
					18.5kW40A	22kW50A	30kW65A	27kW75A	45kW85A
					22kW32A	30kW43A	37kW60A	45kW64A	45kW75A
					22kW25A	30kW33A	37kW47A	45kW47A	45kW52A
	Continuous current(lth)				50A	70A	30A	90A	100A
UL	AC mo- tor	Single phase Three phase		115V 230V	3HP	3HP	5HP	5HP	7.5HP
				115V 230V	5HP	7.5HP	10HP	15HP	15HP
				200V 230V 460V 575V	10HP	10HP	15HP	20HP	25HP
					10HP	15HP	20HP	25HP	30HP
					25HP	30HP	40HP	50HP	50HP
					25HP	30HP	40HP	50HP	50HP
Lifetime (Unit:10:000) Time)Aux.contact				Electrical Mechanical	200	200	200	200	200
Lifetime (Unit:10:000) Time)Aux.contact				Electrical Mechanical	1500	1000	1000	1000	1000
Standard					2NO2NC	2NO2NC	2NO2NC	2NO2NC	2NO2NC
