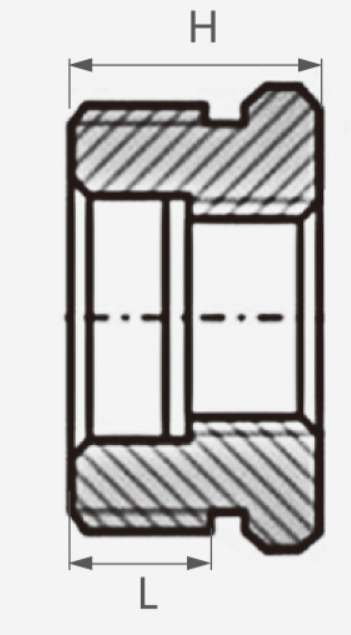

| Size |
Male Thread |
Female Thread |
L |
H |
Spanner Size |
| M20x1.5-M16x1.5 |
M20×1.5 |
M16×1.5 |
16 |
21 |
24 |
| M25x1.5-M20x1.5 |
M25×1.5 |
M20×1.5 |
16 |
21 |
30 |
| M30x2-M16x1.5 |
M30×2 |
M16×1.5 |
18 |
23 |
36 |
| M30x2-M20x1.5 |
M30×2 |
M20×1.5 |
18 |
23 |
36 |
| M32x1.5-M20x1.5 |
M32×1.5 |
M20×1.5 |
18 |
23 |
36 |
| M32x1.5-M25x1.5 |
M32×1.5 |
M25×1.5 |
18 |
23 |
36 |
| M36x2-M25x1.5 |
M36×2 |
M25×1.5 |
18 |
24 |
40 |
| M40x1.5-M25x1.5 |
M40×1.5 |
M25×1.5 |
19 |
25 |
45 |
| M40x1.5-M32x1.5 |
M40×1.5 |
M32×1.5 |
19 |
25 |
45 |
| M48x2-M32x1.5 |
M48×2 |
M32×1.5 |
20 |
26 |
55 |
| M48x2-M40x1.5 |
M48×2 |
M40×1.5 |
20 |
26 |
55 |
| M50x1.5-M32x1.5 |
M50×1.5 |
M32×1.5 |
20 |
26 |
55 |
| M50x1.5-M40x1.5 |
M50×1.5 |
M40×1.5 |
20 |
26 |
55 |
| M56x2-M40x1.5 |
M56×2 |
M40×1.5 |
20 |
26 |
68 |
| M63x1.5-M40x1.5 |
M63×1.5 |
M40×1.5 |
20 |
26 |
68 |
| M63x1.5-M50x1.5 |
M63×1.5 |
M50×1.5 |
20 |
26 |
68 |
| M64x2-M40x1.5 |
M64×2 |
M40×1.5 |
20 |
26 |
68 |
| M64x2-M50x1.5 |
M64×2 |
M50×1.5 |
20 |
26 |
68 |
| M72x2-M50x1.5 |
M72×2 |
M50×1.5 |
22 |
28 |
86 |
| M72x2-M63x1.5 |
M72×2 |
M63×1.5 |
22 |
28 |
86 |
| M75x1.5-M50x1.5 |
M75×1.5 |
M50×1.5 |
22 |
28 |
86 |
| M75x1.5-M63x1.5 |
M75×1.5 |
M63×1.5 |
22 |
28 |
86 |
| M80x1.5-M63x1.5 |
M80×1.5 |
M63×1.5 |
22 |
28 |
90 |
| M90x2-M63x1.5 |
M90×2 |
M63×1.5 |
22 |
28 |
96 |
| M90x2-M75x1.5 |
M90×2 |
M75×1.5 |
22 |
28 |
96 |
| M90x2-M80x1.5 |
M90×2 |
M80×2 |
22 |
28 |
96 |
| M100x2-M80x1.5 |
M100×2 |
M80×2 |
22 |
28 |
110 |
| M100x2-M90x2 |
M100×2 |
M90×2 |
22 |
28 |
110 |
| M115x1.5-M90x1.5 |
M115×1.5 |
M90×1.5 |
24 |
31 |
125 |
| M115x1.5-M100x1.5 |
M115×1.5 |
M100×1.5 |
24 |
31 |
125 |
| NPT1/2-NPT1/4 |
NPT1/2 |
NPT3/8 |
16 |
21 |
24 |
| NPT3/4-NPT1/2 |
NPT3/4 |
NPT1/2 |
16 |
21 |
24 |
| NPT1-NPT1/2 |
NPT1 |
NPT1/2 |
18 |
23 |
36 |
| NPT1-NPT3/4 |
NPT1 |
NPT3/4 |
18 |
23 |
36 |
| NPT1 1/4-NPT3/4 |
NPT1 1/4 |
NPT3/4 |
19 |
25 |
45 |
| NPT1 1/4-NPT1 |
NPT1 1/4 |
NPT1 |
19 |
25 |
44 |
| NPT1 1/2-NPT1 |
NPT1 1/2 |
NPT1 |
20 |
26 |
45 |
| NPT1 1/2-NPT1 1/4 |
NPT1 1/2 |
NPT1 1/4 |
22 |
28 |
53 |
| NPT2-NPT1 1/4 |
NPT2 |
NPT1 1/4 |
22 |
28 |
68 |
| NPT2-NPT1 1/2 |
NPT2 |
NPT1 1/2 |
22 |
28 |
68 |
| NPT2 1/2-NPT1 1/2 |
NPT2 1/2 |
NPT1 1/2 |
28 |
35 |
86 |
| NPT2 1/2-NPT2 |
NPT2 1/2 |
NPT2 |
28 |
35 |
86 |
| NPT3-NPT2 |
NPT3 |
NPT2 |
28 |
35 |
96 |
| NPT3-NPT2 1/2 |
NPT3 |
NPT2 1/2 |
28 |
35 |
96 |
| NPT3 1/2-NPT2 |
NPT3 1/2 |
NPT2 |
28 |
35 |
110 |
| NPT3 1/2-NPT2 1/2 |
NPT3 1/2 |
NPT2 1/2 |
28 |
35 |
110 |
| NPT3 1/2-NPT3 |
NPT3 1/2 |
NPT3 |
28 |
35 |
110 |
| NPT4-NPT3 |
NPT4 |
NPT3 |
28 |
35 |
124 |
| NPT4-NPT3 1/2 |
NPT4 |
NPT3 1/2 |
28 |
35 |
124 |
| G1/2-G3/8 |
G1/2 |
G3/4 |
16 |
21 |
24 |
| G3/4-G1/2 |
G3/4 |
G1/2 |
16 |
21 |
30 |
| G1-G1/2 |
G1 |
G1/2 |
18 |
23 |
36 |
| G1-G3/4 |
G1 |
G3/4 |
18 |
23 |
36 |
| G1 1/4-G3/4 |
G1 1/4 |
G3/4 |
19 |
24 |
45 |
| G1 1/4-G1 |
G1 1/4 |
G1 |
19 |
24 |
45 |
| G1 1/2-G1 |
G1 1/2 |
G1 |
20 |
26 |
55 |
| G1 1/2-G1 1/4 |
G1 1/2 |
G1 1/4 |
20 |
26 |
55 |
| G2-G1 1/4 |
G2 |
G1 1/4 |
20 |
26 |
68 |
| G2-G1 1/2 |
G2 |
G1 1/2 |
20 |
26 |
68 |
| G2 1/2-G1 1/2 |
G2 1/2 |
G1 1/2 |
22 |
28 |
86 |
| G2 1/2-G2 |
G2 1/2 |
G2 |
22 |
28 |
86 |
| G3-G2 |
G3 |
G2 |
22 |
28 |
96 |
| G3-G2 1/2 |
G3 |
G2 1/2 |
22 |
28 |
96 |
| G3 1/2-G2 |
G3 1/2 |
G2 |
22 |
28 |
110 |
| G3 1/2-G2 1/2 |
G3 1/2 |
G2 1/2 |
22 |
28 |
110 |
| G3 1/2-G3 |
G3 1/2 |
G3 |
22 |
28 |
110 |
| G4-G3 |
G4 |
G3 |
24 |
32 |
124 |
| G4-G3 1/2 |
G4 |
G3 1/2 |
24 |
32 |
124 |
