| Whether the smart |
NO |
| Max.Current |
5A |
| Max.Voltage |
250VAC |
| Place of Origin |
Zhejiang,China |
| Model Number |
ME8104 |
| Operating Temperature |
-25~60℃ |
| Protection Level |
IP65 |

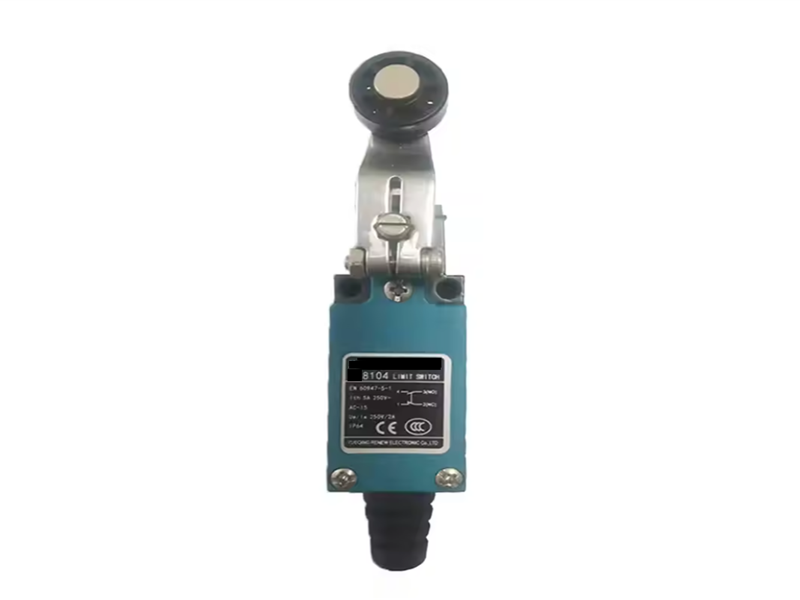

| Product Name |
Limit Switch |
| Rating |
5A 250VAC |
| Actuator Form |
Roller Arm |
| Operating speed |
5 mm to 0.5 m/s |
| Operating Frequency |
120 operations/min |
| Insulation Resistance |
100MΩ min (500VDC) Max |
| Contact Resistance |
25mΩ Max. (initial Value) |
| Mechanical Life |
1,000,000 operations min |
| Protective construction |
IP65 |
| Weight |
Approx.130 to 190g |
