| Applications | ||||

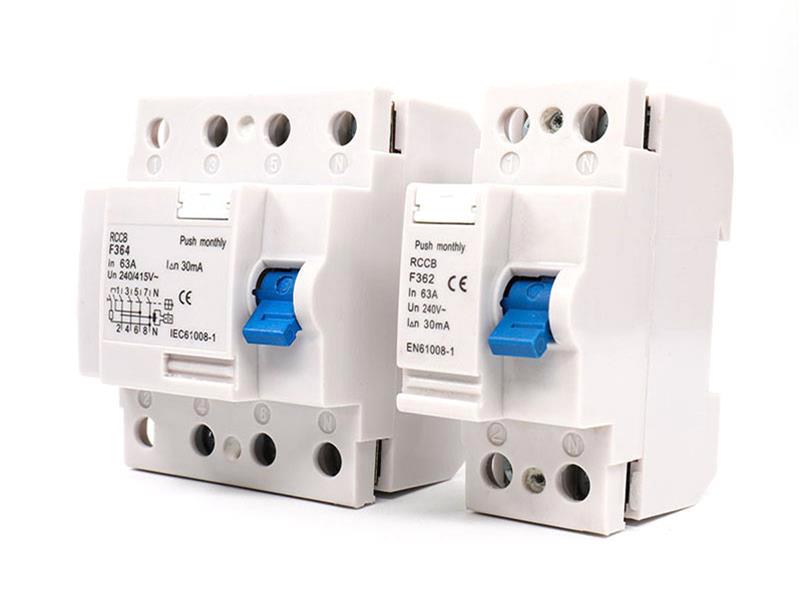

| Residual current circuit breakers provide the function, of isolation.switching and earth leakage protection of electrical circuits. They open a circuit automatically in the event of an earth fault between phase and earth and / ornatural and earth. A wide range of current ratings and sensitivities are available. Suitable for domestic, commevical and industrial applications. | ||||
| Order Information(Electronic type shall be made to order) | ||||
Pole |
No. |
Cat.No | ||
| Sensitivities mA | ||||
| 30 | 100 | 300 | ||
2 |
25 | ID21030 | ID21100 | ID21300 |
| 32 | ID22030 | ID22100 | ID22300 | |
| 40 | ID23030 | ID23100 | ID23300 | |
| 63 | ID24030 | ID24100 | ID24300 | |
4 |
25 | ID41030 | ID41100 | ID41300 |
| 32 | ID42030 | ID42100 | ID42300 | |
| 40 | ID43032 | ID43100 | ID43300 | |
| 63 | ID44030 | ID44100 | ID44300 | |
| Specification | ||||
| Current ratings | 25,32,40,63A | |||
| Voltage ratings | 2 pole: 230/240V AC; 4 pole: 400V/415V AC | |||
| Sensitivities (non-adjustable) | 30,100,300,500mA | |||
| Rated residual making and breaking capacity I△ M | In=25,32,40A I△ M=500A; In=63A I△ M=1KA | |||
| Rated limited non-operating current | 0.5In | |||
| Electrical endurance | 6000 cycles (on load) | |||
| Connection capacity | Tunnel terminals for cable up to 35mm² | |||

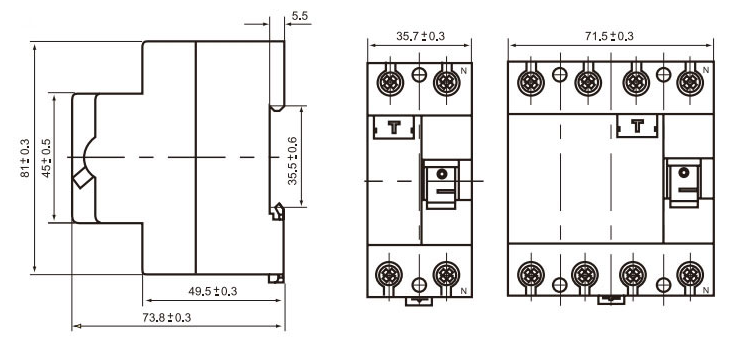

| Width in 9mm modules | 2P for all ratings 4, 4P for all ratings 8 | |||
| Operating temperature | ’-5℃ 55℃ | |||
